2D Modelling and Laser Cutting for mBot 2 Course

This course combines robotics with the creativity of digital fabrication. Using mBot2, Tinkercad and laser-cut plywood, students design functional 2D components, assemble moving mechanisms and bring them to life through programming. Across nine projects, from a musical barrel organ to an interactive carousel and working crane, students discover how digital designs become real machines.
Students program motors and sensors in mBlock while exploring geometry, forces, materials and mechanical motion. Some projects introduce computational design and simple controls; others challenge learners with complex assemblies and practical testing. Teachers can use these activities to connect coding, engineering and creative problem-solving through engaging, hands-on STEAM lessons.
Lessons available in the Teacher and School plans.
  • illustrated project introductions with graphics and animations,
  • step-by-step 2D modelling instructions in Tinkercad and Codeblocks,
  • laser-cutting files for functional wooden components,
  • detailed instructions for assembling and testing the models,
  • step-by-step mBlock programming with motors, sensors and controls,
  • access to additional teaching resources.

Lesson plans

BARREL ORGAN
Can wooden blocks become music? Create an engraved note board, calibrate four optical sensors, and discover how physical patterns turn into melodies.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
BULLDOZER
What makes rigid plywood bend? Generate a flexible blade with precisely arranged cuts, then program autonomous movement and measure how effectively the robot clears obstacles.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
CAROUSEL
Six wooden airplanes swing outward as the ride accelerates! Design their laser-cut parts and use ultrasonic sensing to explore speed control and circular motion.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
CRANE

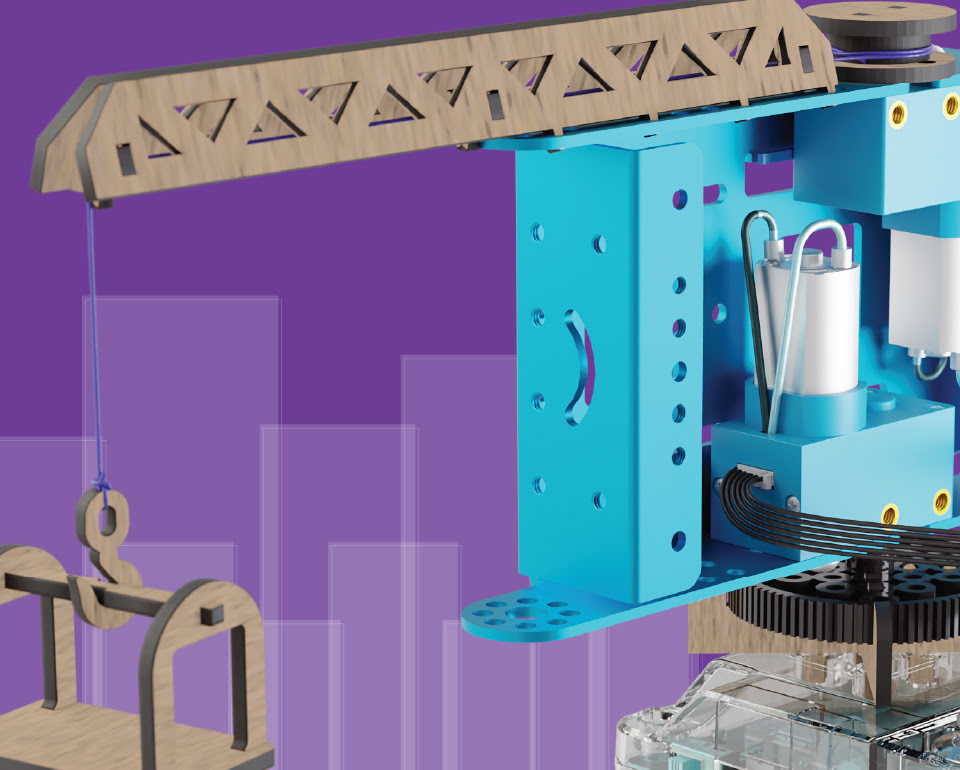

From flat wooden pieces to a working lifting machine! Assemble a lattice boom and motorized winch, then control two independent movements to transport cargo.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
FERRIS WHEEL
Twenty gondolas, one rotating structure, and a clever use of gravity. Explore rotational symmetry through algorithmic design and discover why the cabins stay upright.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
FLYING BIRD
Bring a wooden owl to life with flapping wings! Discover how a crank-and-string mechanism transforms motor rotation into lifelike movement controlled by a joystick.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
FORTUNE WHEEL
Who's going to win the next round? Assemble a laser-cut prize spinner and program CyberPi buttons to start and stop the action.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
MUSIC BOX
Turn colored blocks into a tune! Arrange them around a stationary base and program a rotating sensor to recognize colors and play matching notes.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
ZOETROPE
Still pictures spring to life inside a spinning wooden drum. Experiment with motor speed and viewing slits to discover the fascinating science behind animation.

Robot designed for: Makeblock mBot 2, mBlock programming app, xTool laser cutter and software.
